Cerebral infarction

Skull and brain imaging

By
Dr. Firas Abdullah

Aims of our lectures:

To know the normal appearance of skull on X-ray

To learn the normal CT and MRI of brain and skull

To discuss some cerebral pathologies and see some cases of trauma

To know about pathology of sinus, orbit, and neck

Cerebral infarction:

• Changes of acute infarction are not usually recognized on CT before 6 hours

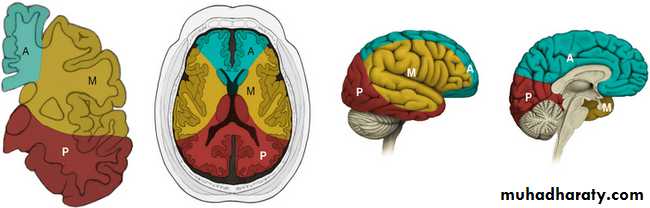

• Over the next few days the infarct evolves into a low attenuation area conforming to the shape of a recognizable arterial distribution
• The infarct may gradually resolve, leaving an atrophic area and/or a persistent scar
• MRI scanning : hyperintense areas on a T2-weighted scan, within 8 hours of the onset of symptoms. Special fast scanning techniques such as perfusion / diffusion scans show changes within minutes of the onset of symptoms.

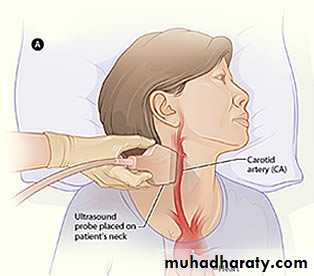

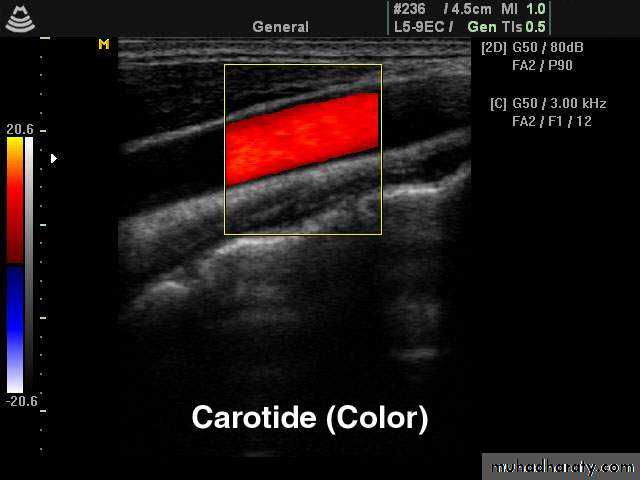

• Patients whose symptoms resolve within 24 hours are referred to as having a transient ischaemic attack (TIA). A common cause for a TIA is embolus from an atheromatous stenosis of the internal carotid artery. The presence of atheromatous plaque and degree of stenosis can be assessed with Doppler ultrasound of the neck. Ultrasound can also demonstrate a dissection of the carotid artery in the neck.

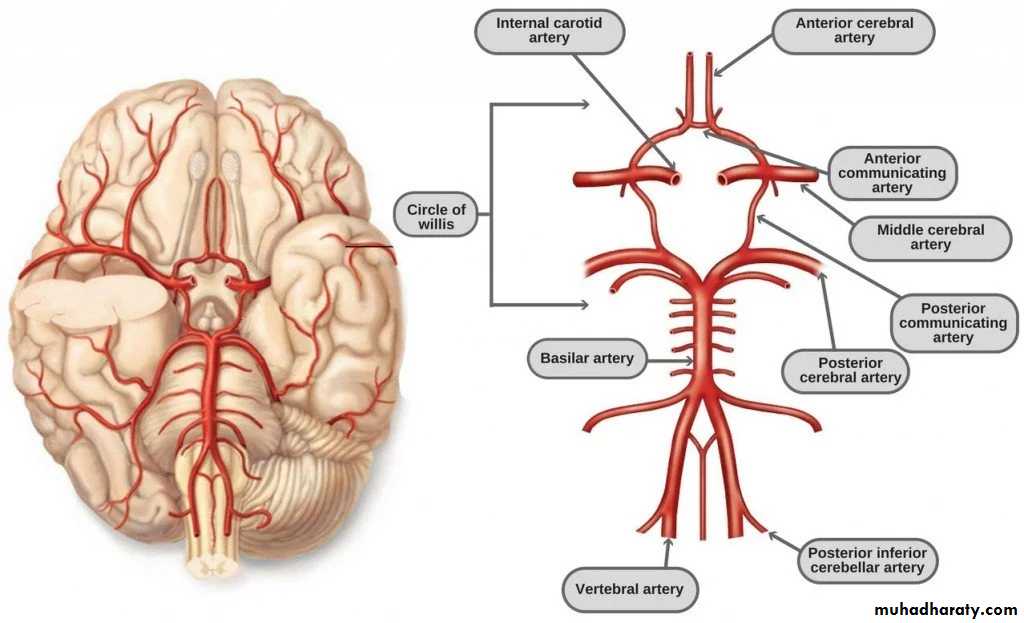

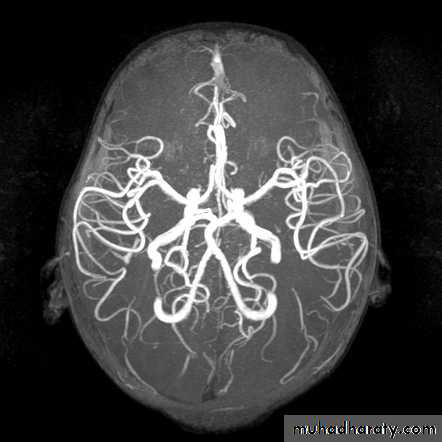

• The cerebral vessels may be imaged non-invasively with MR angiography (MRA).

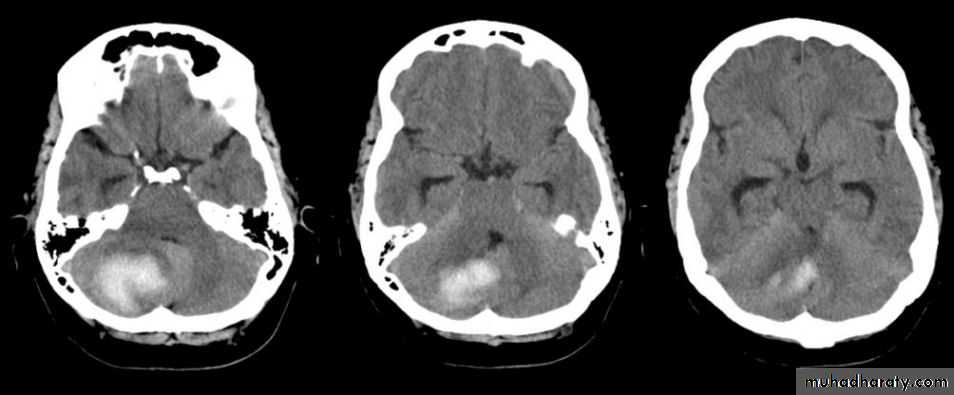

Cerebral haemorrhage:

• Haemorrhage is demonstrable on CT immediately after the event as a region of high attenuation
• Frequently causing mass effect.
• The initial high density of haemorrhage lessens over the following week or two leaving a low- density area indistinguishable from an infarct.
• May be associated with intraventricular or subarachnoid bleeding

Subarachnoid haemorrhage

• Usually due to a ruptured intracranial aneurysm or less commonly an arteriovenous malformation.


• CT is the best initial investigation to diagnose.
• A subarachnoid haemorrhage is recognized by high density blood in the cortical sulci, Sylvian fissures and basal cisterns.

• CT will also show any intracerebral haemorrhage or blood in the ventricles

• An unenhanced routine head CT is followed by CT angiography as a single investigation to diagnose subarachnoid haemorrhage, localize the bleeding and demonstrate the aneurysm.

Head injury

• Computed tomography is performed without intravenous contrast administration
• brain and bone window.
• Computed tomography can distinguish between extracerebral and intracerebral lesions
• CT can also demonstrate fluid levels in the sinuses and mastoid air cells suggesting a facial or skull base fracture, air in the orbits and in severe head injury, air in the cranial cavity.
• Examination on bone windows can demonstrate fractures of the skull vault, face or skull base.

• Extracerebral haematomas show a high density for about 1–2 weeks following the injury, but after 3–4 weeks the density decreases to become lower than that of the brain. In the intervening period, haematomas pass through a phase of being isodense with the brain
• Causes Midline or ventricular displacement.
• Extradural haematoma is seen as a lens-shaped, smoothly demarcated, high-density area situated over the surface of the hemisphere associated with a skull fracture

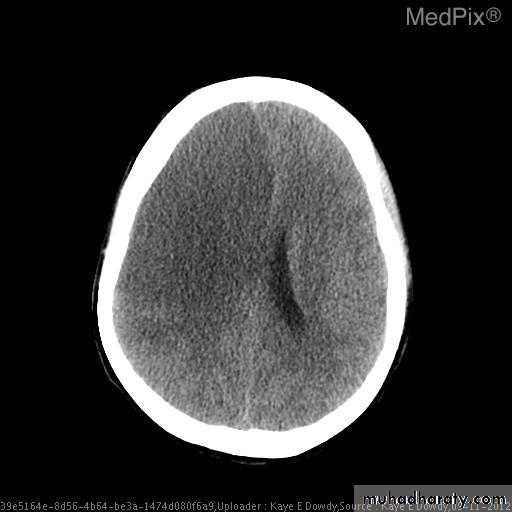

• Subdural haematoma conforms to the shape of the underlying brain (crescentic shape) and occurs most commonly over the convexity of the brain, but can also arise along the falx and tentorium

• Contusions are bruises of the brain which appear as areas of low attenuation and may be associated with high-density areas due to haemorrhage.
• Intracerebral haematomas are seen as areas of high density, which may be multifocal. There may be mass effect causing displacement of the ventricles and accompanying brain oedema.

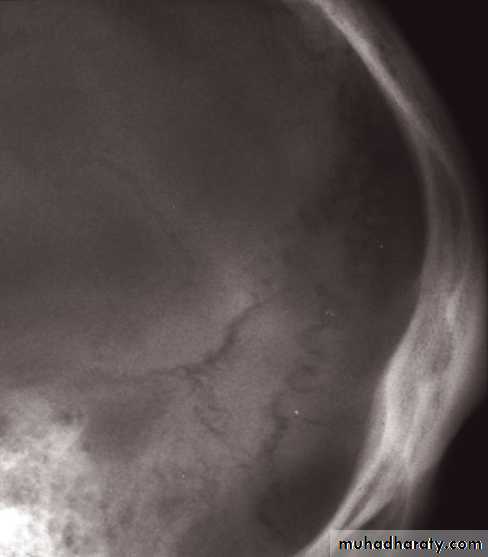

• Fractures of the skull base or vault should be looked for on bone window settings.
• Assessment of fracture type: linear or depressed . Also assessment of Paranasal sinuses, sphenoid, petrous and occipital bones

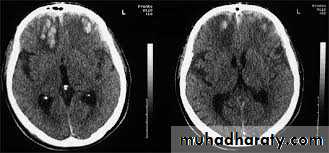

Brain Contusion
