Anatomy Lecture

Upper Limb Nerves
Part I

Dr. Rana Al-tae

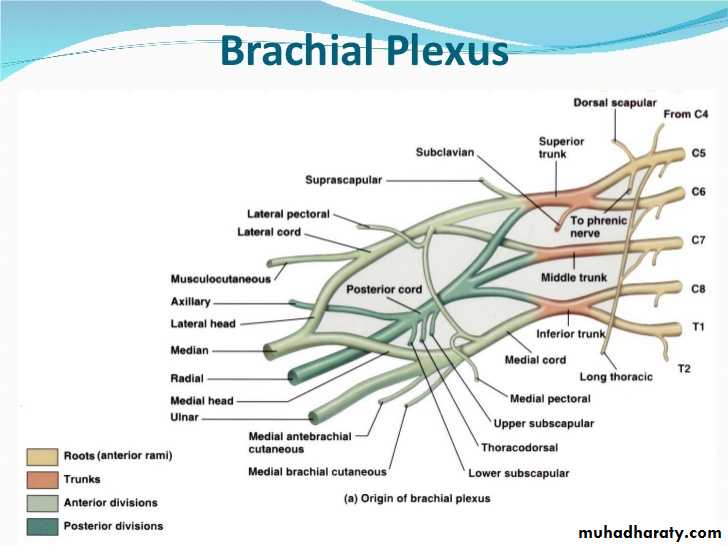

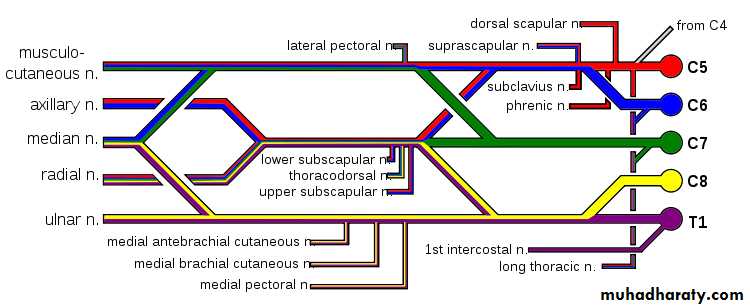

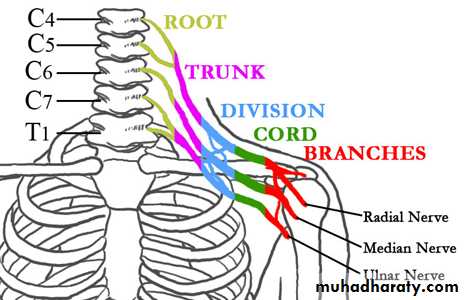

Brachial Plexus

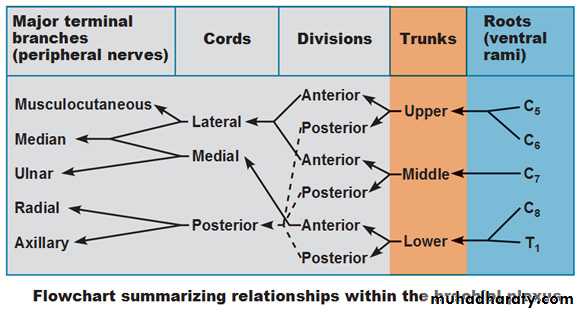

Ron Taylor Drinks Cold Bertukal
Roots
Trunks
Divisions
Cords
Branches

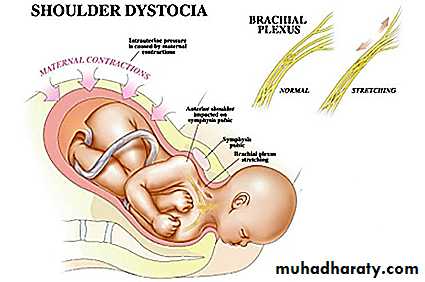

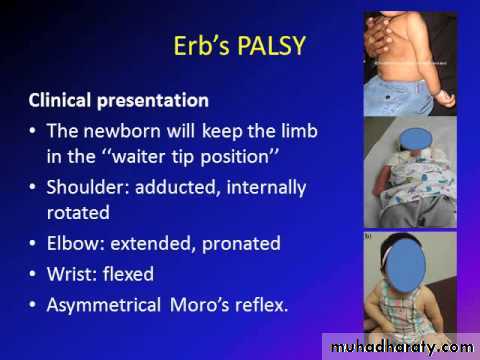

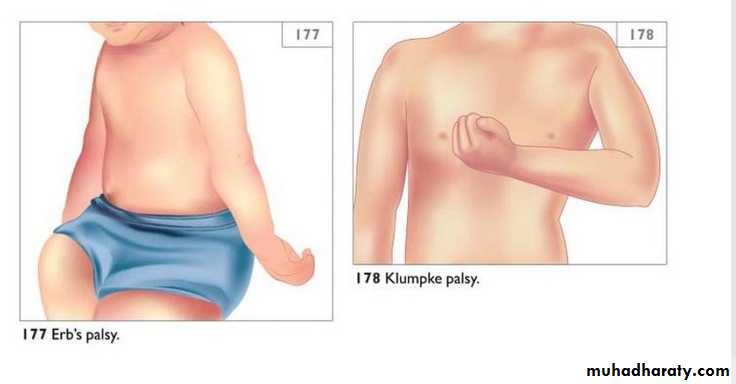

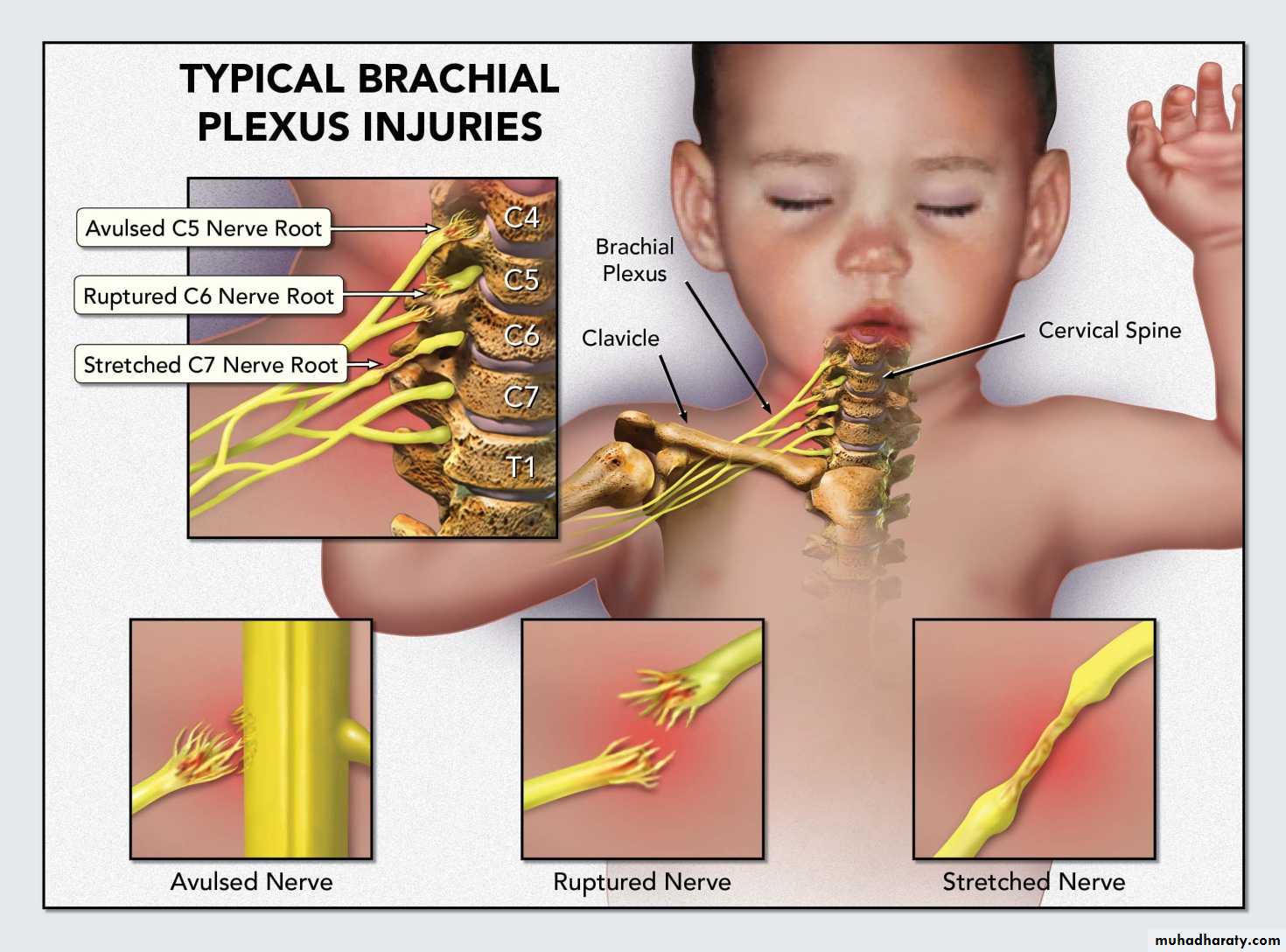

Erb’s Palsy (Upper trunk injury)

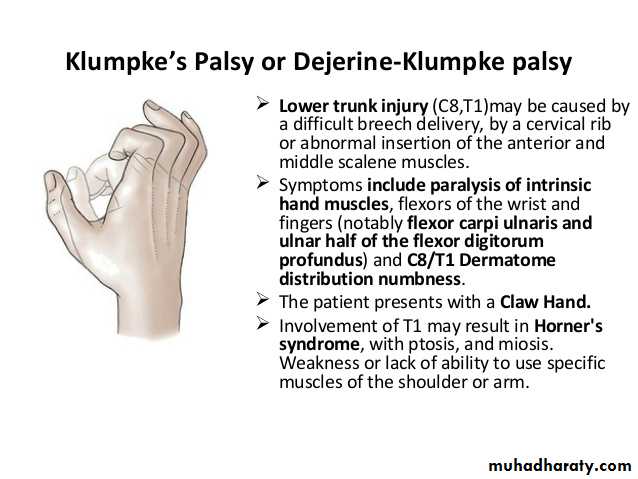

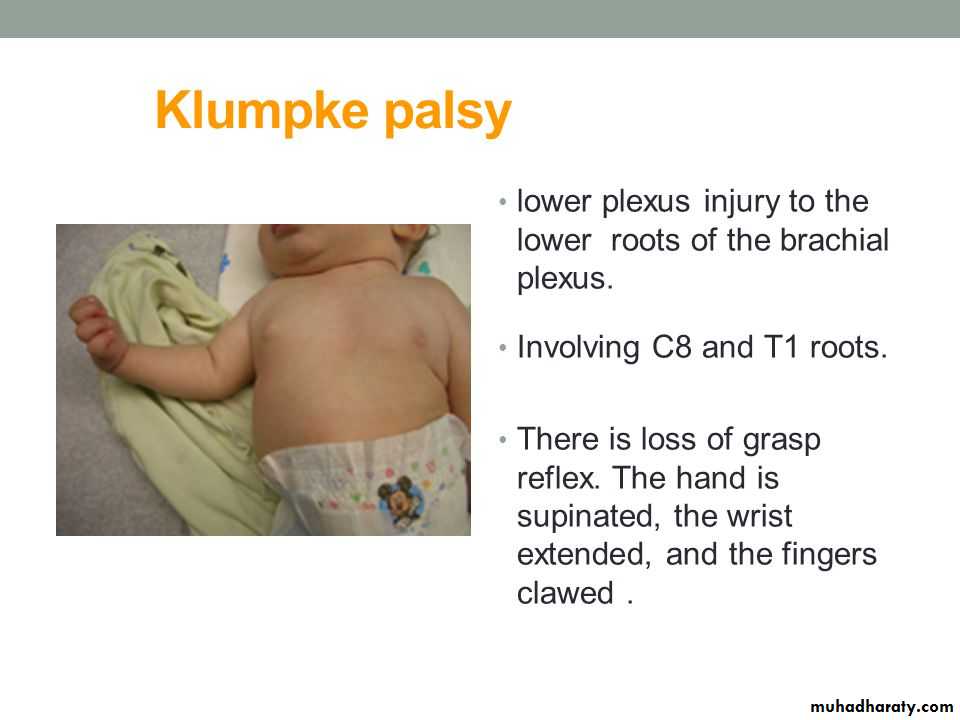

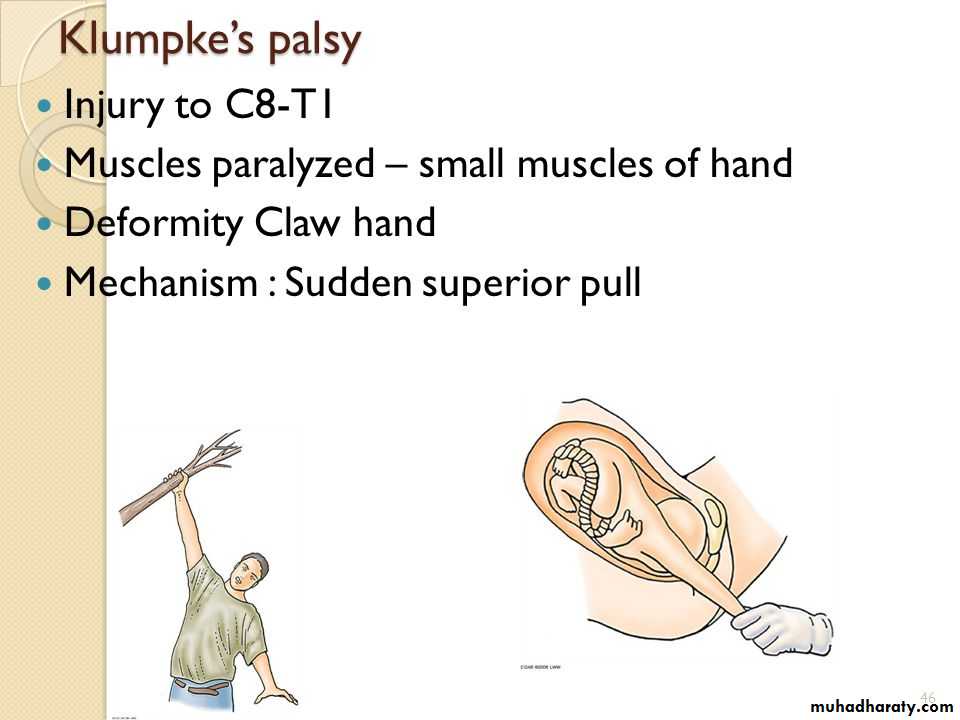

Klumpke’s palsy (Lower trunk injury)

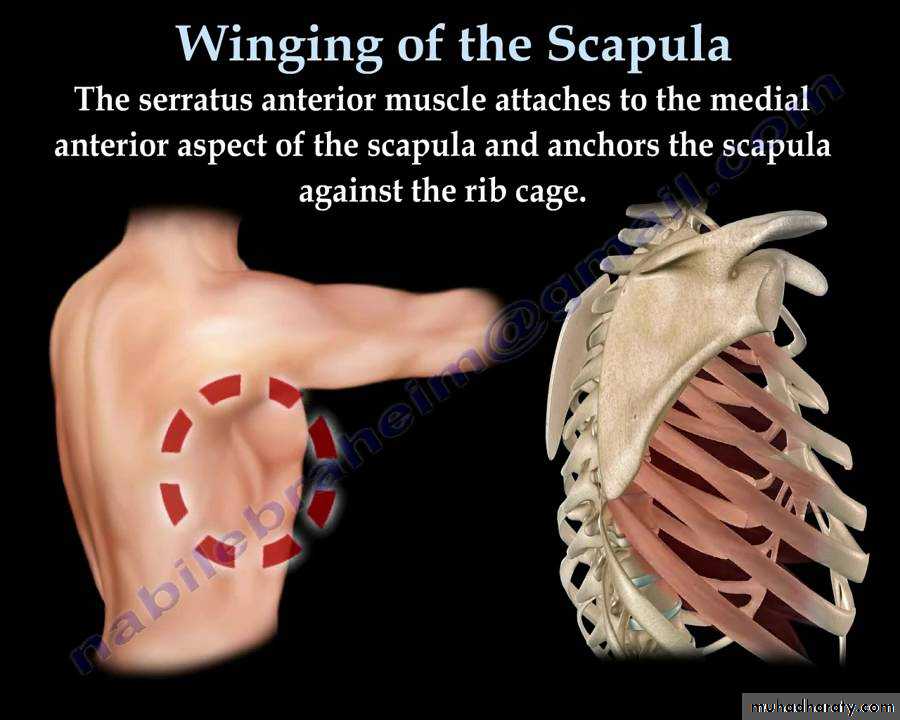

Winged Scapula ( long thoracic n. injury)

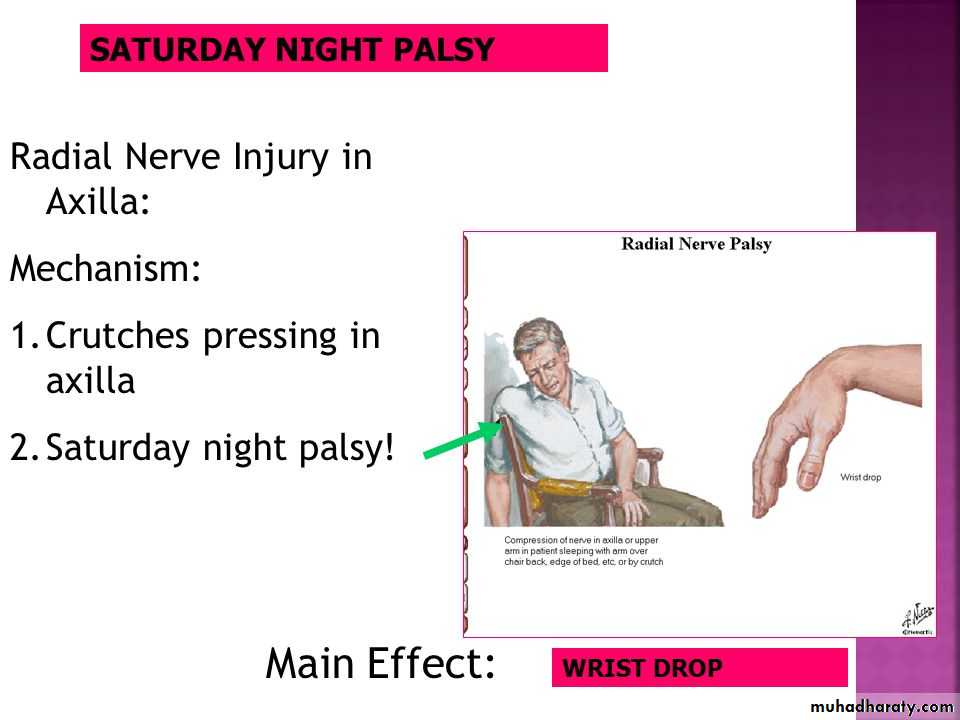

Saturday night palsy (Radial n. injury)

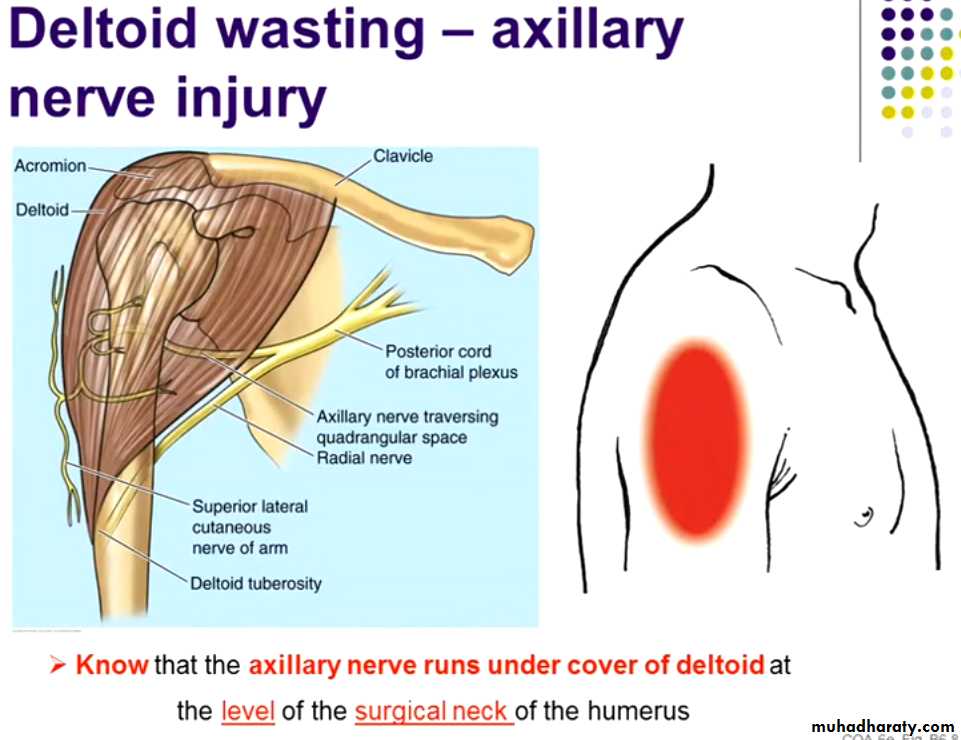

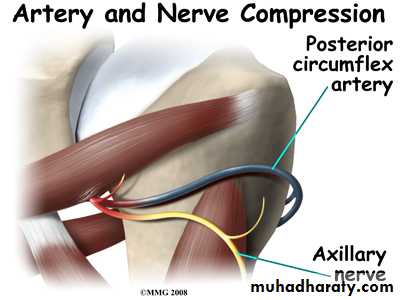

Axillary Nerve

Has a close relation to the 3rd part of the axillary artery.
Pass through Quadrangular space.
Divide into ant. & post. Branches.
The ant. branch accompany the post. circumf. humeral a. and ends by supplying the Deltoid m.
The post branch supplies deltoid & teres minor mm.
Becomes upper lat. cut. n. of the Arm.


It gives articular branch to the shoulder j.
Injury will cause loss of shoulder contour and appearance of the greater tubercle & loss of shoulder Abduction.
Note: Initiation of the abd. is by supraspinatus m. but then completed by the deltoid which is the main abductor.

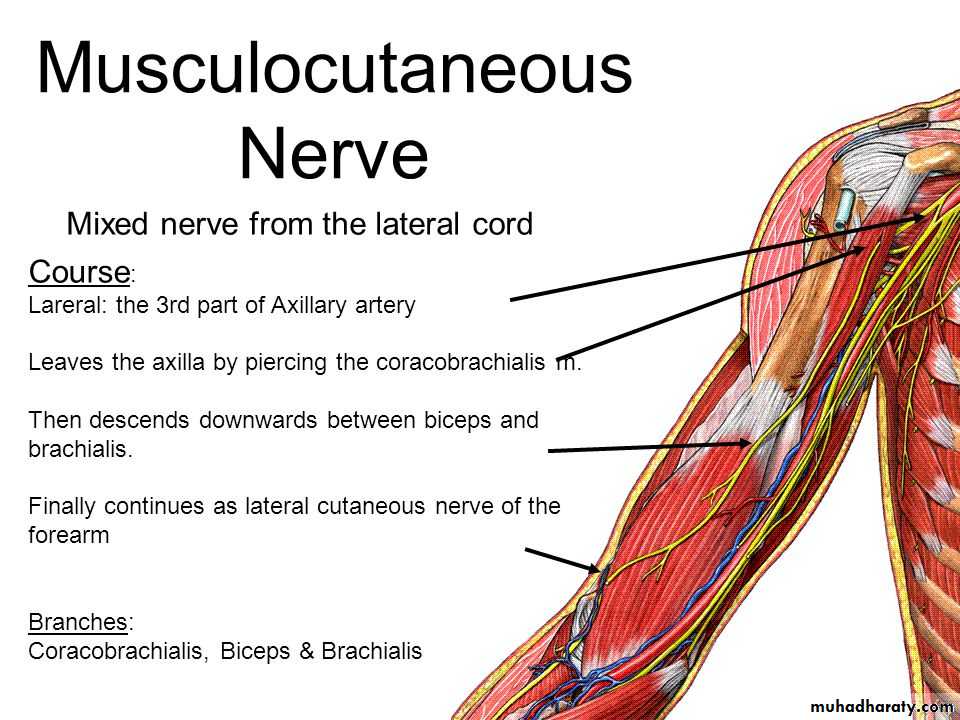

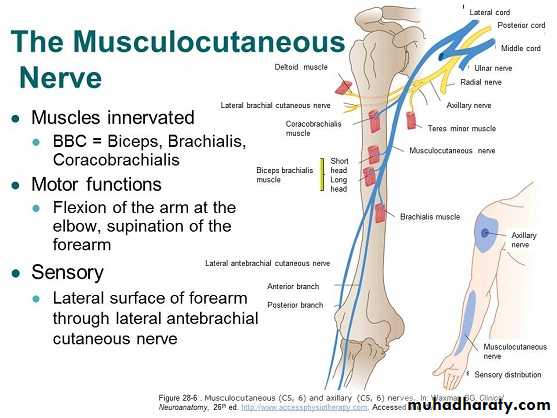

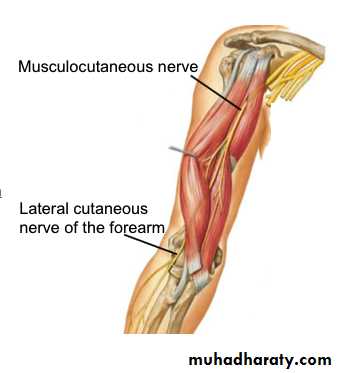

Musculocutaneous nerve

In axilla has close relation to the 3rd part of axillary artery.
Peirce Coracobrachialis muscle.
Then btw. Biceps & Brachialis mm.
Then on lat. side of biceps tendon.
Supplies BBC & elbow j.
Above the elbow bend it becomes lat. cut. n. of the forearm.

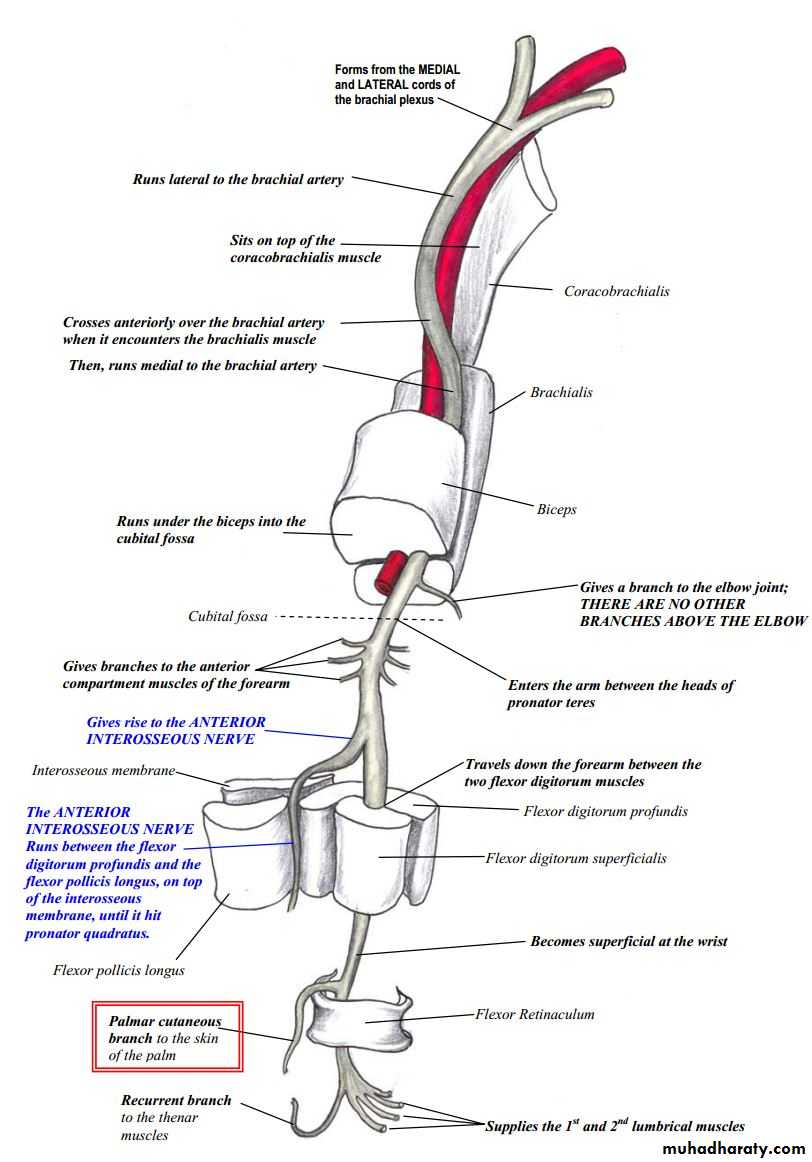

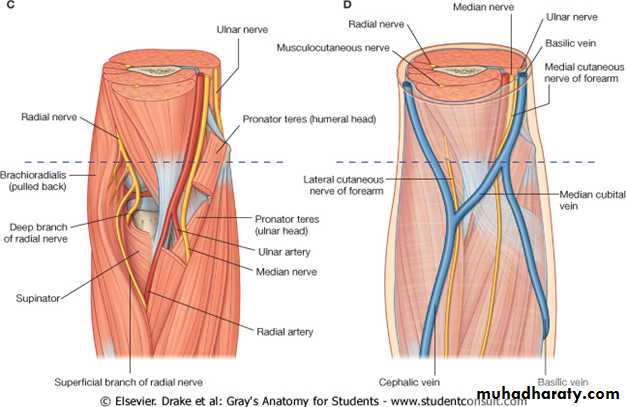

Median Nerve

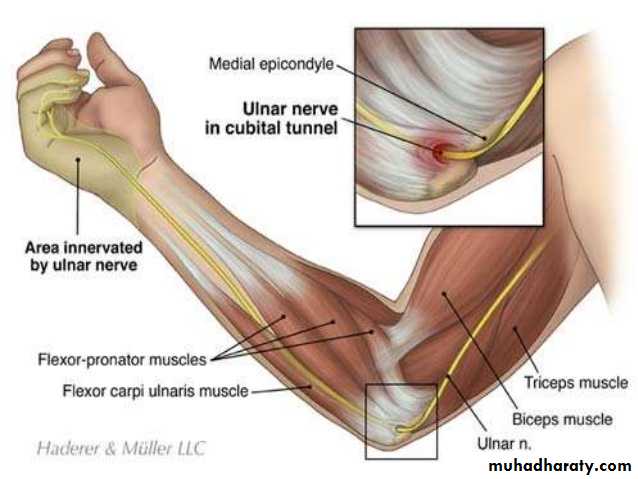

Ulnar nerve

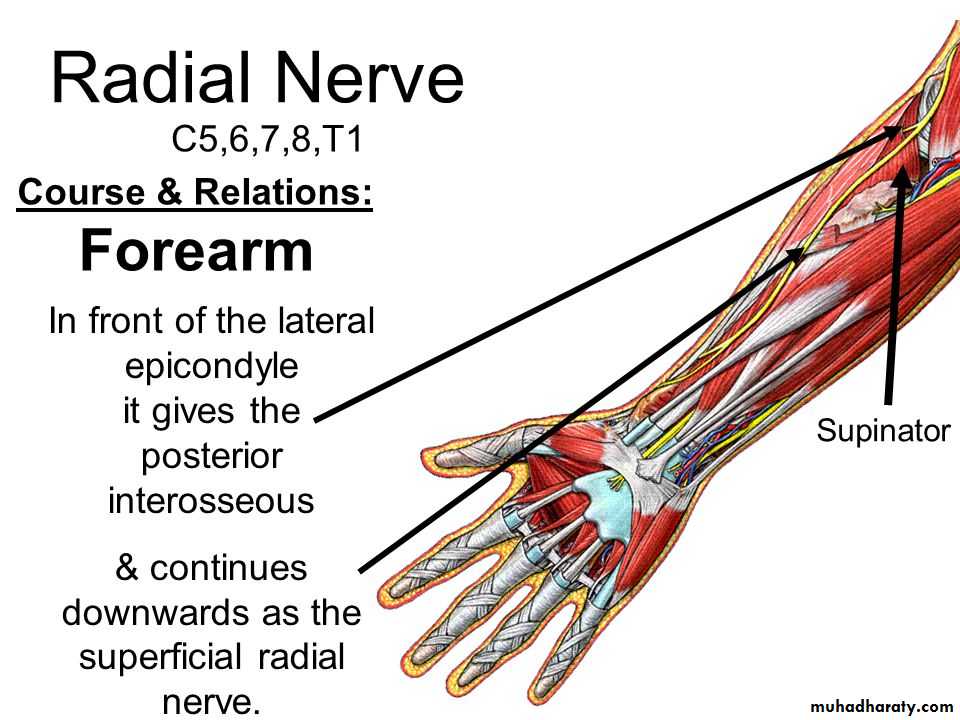

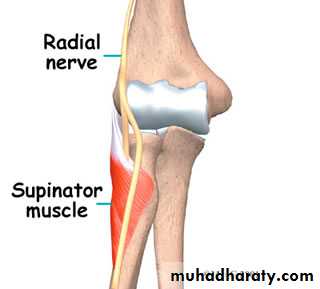

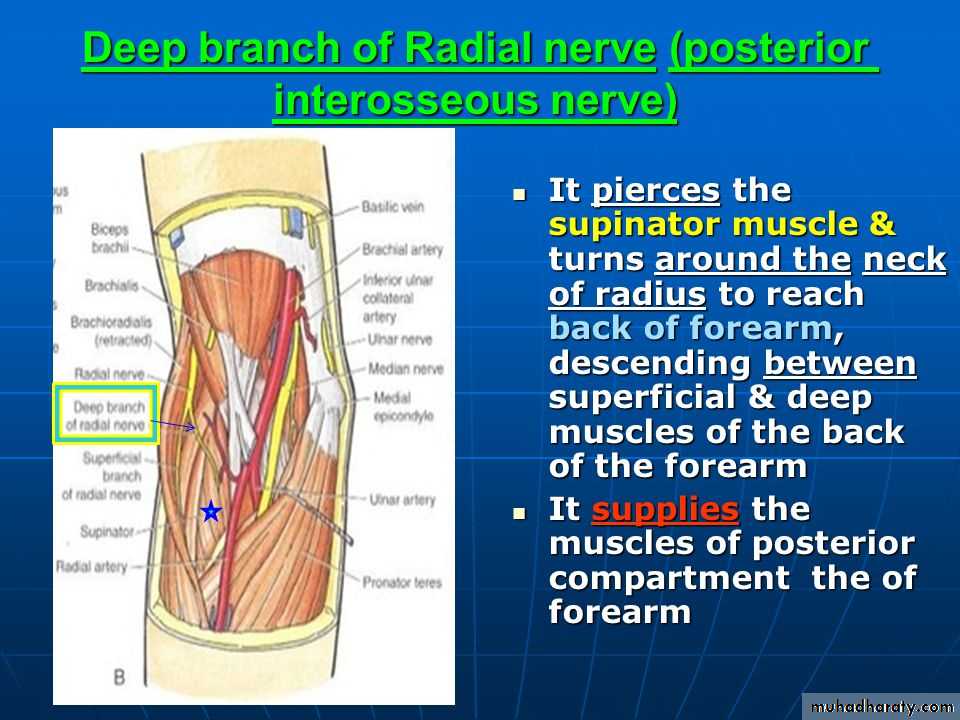

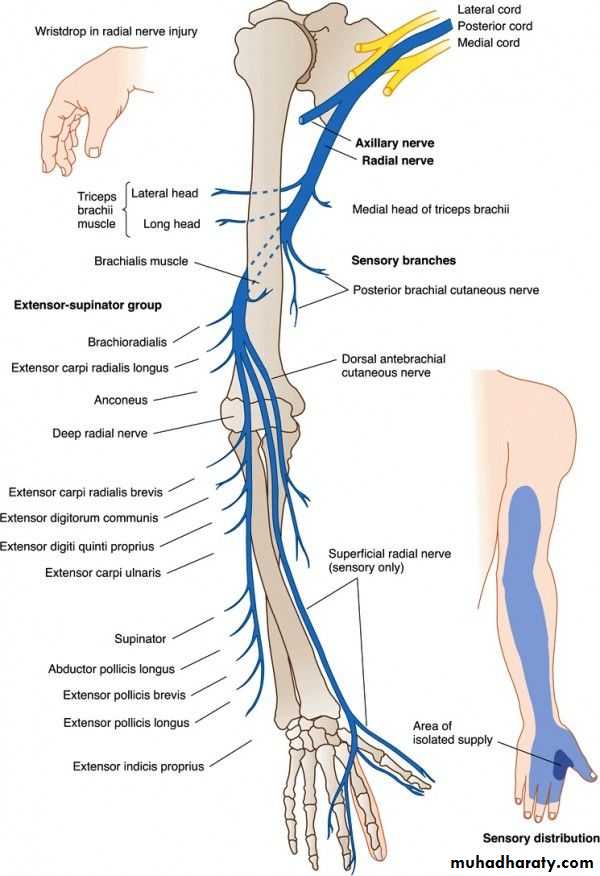

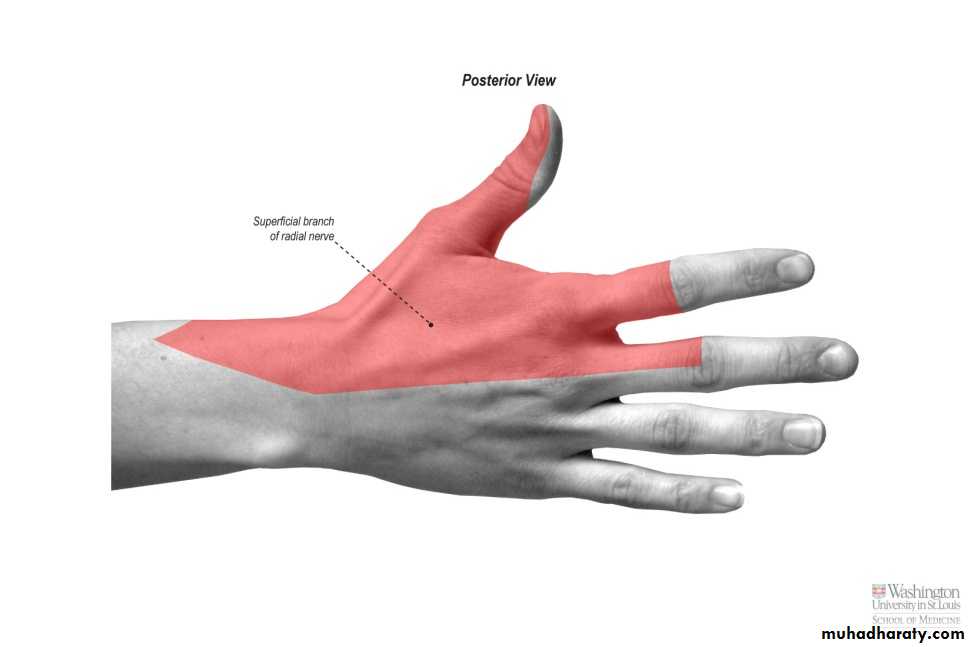

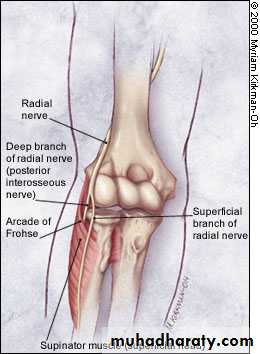

Radial Nerve

The End….
